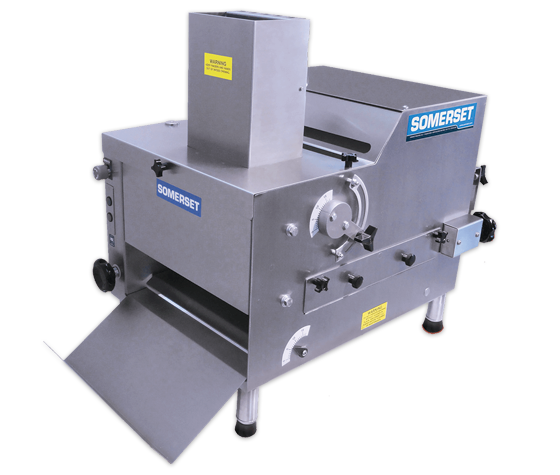

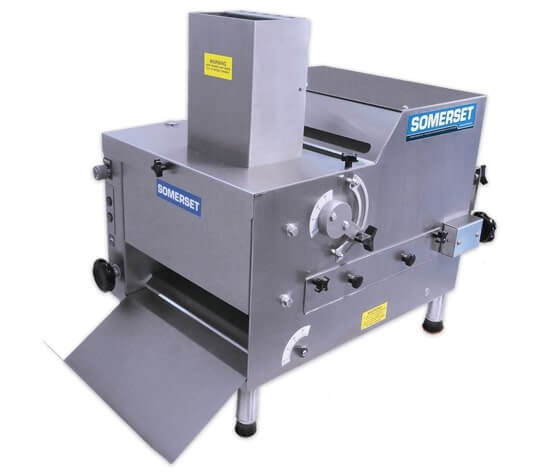

Features of the Somerset CDR-170 Dough Moulder

Some of the features of the CDR-170 include:

  • Makes 30 pcs. per minute, up to 15”
  • Synthetic rollers
  • Safety sensors for automatic shutoff
  • Compact design, ideal for use in limited space
  • Sanitary, heavy duty, all stainless steel welded construction
  • Spring loaded scrapers readily removable for easy cleaning
  • Simple handle adjustment for uniform products
  • Maintenance free drive mechanism, isolated from the roller area
  • Easy to operate, easy to clean
  • Special pressure plates available to increase machine’s versatility
  • Easily removable conveyor belt for cleaning and service

Perfect for

  • Breads
  • Challah
  • Hot Dog Buns
  • Specialty Breads
  • Dinner Rolls
  • Bolillos
  • Cuban Bread
  • Sub Rolls
  • Breadsticks
  • Pretzels
  • Baguettes

Specifications of the Somerset CDR-170 Dough Moulder

 Download PDF
This durable, dependable performer has been designed to produce consistent dough rolling and sheeting results with a wide range of different types of dough. It ships standard with synthetic rollers but metallic rollers are also available. Specifications of the CDR-1500 include:
Rollers  3.5” dia. by 15” length (8.89 cm dia. by 38.10 cm length)
Scrapers Synthetic, Spring Loaded, Removable
Bearings Sealed Ball Bearings, Permanently Lubricated
Gear Motor Heavy Duty 1/2 HP, Maintenance Free, Single Phase, 115v/60Hz, 220v/50Hz
Conveyor Length 50” (127cm)
Conveyor Belt 14” (35.50cm)
Pressure Plate 14” x 24” (35.50cm x 61cm)
Finishing All Stainless Steel
Shipping Weight 220 lbs (100kgs)
