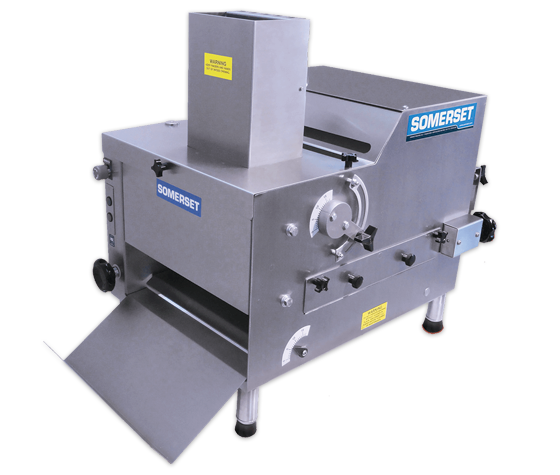

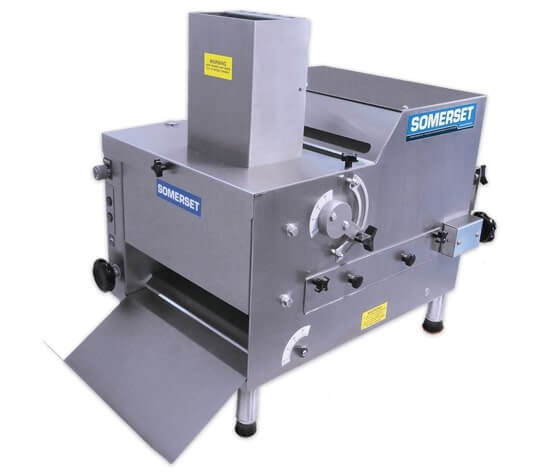

The Somerset CDR-170 Dough Moulder Interchangeable pressure plate from 6” to 15”

Features of the Somerset CDR-170

  • Makes 30 pcs. per minute, up to 15”
  • Synthetic rollers
  • Safety sensors for automatic shutoff
  • Compact design, ideal for use in limited space
  • Sanitary, heavy duty, all stainless steel welded construction
  • Spring loaded scrapers readily removable for easy cleaning
  • Simple handle adjustment for uniform products
  • Maintenance free drive mechanism, isolated from the roller area
  • Easy to operate, easy to clean
  • Special pressure plates available to increase machine’s versatility
  • Easily removable conveyor belt for cleaning and service

Perfect for:

  • Breads
  • Challah
  • Hot Dog Buns
  • Specialty Breads
  • Dinner Rolls
  • Bolillos
  • Cuban Bread
  • Sub Rolls
  • Breadsticks
  • Pretzels
  • Baguettes


3.5” dia. by 15” length (8.89 cm dia. by 38.10 cm length)
Synthetic, spring-loaded, easily removable
Permanently lubricated, sealed ball bearings
Gear Motor
Heavy Duty 1/2 HP, Maintenance Free, Single Phase, 115v/60Hz, 220v/50Hz
Conveyor Length
50” (127cm)
Conveyor Belt
14” (35.50cm)
Pressure Plate
14” x 24” (35.50cm x 61cm)
All Stainless Steel
Shipping Weight
220 lbs (100kgs)
